Send InquiryAutomatic Bag Filling System
Price 3725000 INR/ Unit
MOQ : 1 Unit
Automatic Bag Filling System Specification
- Product Type
- Automatic Bag Filling System
- Power
- 7 Horsepower (HP)
- Condition
- New
- Control System
- PLC Based
- Sealing Type
- Heat Sealing / Stitching
- Filling Capacity
- 5 kg to 50 kg
- Automatic Grade
- Fully Automatic
- Production Capacity
- 20-50 Bags/Hour
- Packaging Material
- Plastic, Paper, Jute Bags
- Material
- Mild Steel / Stainless Steel
- Weight
- 650 kg
- Voltage
- 380 V
- Machines Type
- Bag Filling Machine
- Driven Type
- Electric
- Dimension (L*W*H)
- 2200 x 850 x 1650 mm
- Electric Current Type
- AC
- Input Power
- Three Phase
- Mobility
- Fixed with Leveling Pads (Wheels Optional)
- Hopper Capacity
- 75 liters
- Operation Mode
- Touch Panel / Button Control
- Applicable Industries
- Food, Chemical, Fertilizer, Construction
- Air Pressure Requirement
- 6-8 bar
- Display Type
- Digital LCD Display
- Feeding Mechanism
- Vibratory / Screw / Belt Feeder
- Conveyor Type
- Roller/Flat Belt
- Safety Features
- Emergency Stop, Overload Protection, Safety Guards
- Bag Type Supported
- Open Mouth / Valve Bags
- Accuracy
- ±0.2% of Filling Weight
Automatic Bag Filling System Trade Information
- Minimum Order Quantity
- 1 Unit
- FOB Port
- Ahmedaabd
- Supply Ability
- 20 Units Per Month
- Delivery Time
- 1 Week
- Sample Available
- Yes
- Packaging Details
- standard packing
- Main Export Market(s)
- Middle East, Western Europe, Central America, Africa, Asia, Eastern Europe, North America, Australia
- Main Domestic Market
- All India
- Certifications
- iso certified
About Automatic Bag Filling System
We are one of the big names that offer AUTOMATIC BAG FILLING SYSTEM for industrial facilities to enhance packaging speed and overall productivity. The machine comes with high-performance sensors-based technologies to ensure accurate and precise functioning. It is ideal for filling and packaging various types of products in granular, powdered, and pelletized forms. It is in high demand due to its user-friendly operation, low power consumption, and less service requirement. The gentle filling mechanism of the offered AUTOMATIC BAG FILLING SYSTEM ensures safe filling without risk of damage to the materials to be filled.
Features:
- Fully automated control that eliminates human error.
- Safe and efficient filling.
- Robust construction leads to longer service life.
- Low power consumption.
- Capability to handle a wide range of materials.
- Variable filling speed.
- Simple user interface.
Technical Specifications:
- Weighing: Automatic by Multihead Weigher
- Sealing: Manual
- Free Parts: 1 Set
- Voltage: 110V, 220V, 50/60Hz
- Weight Range: 8-3000g
Product Details:
- Capacity : 25-50 KG
- Machine Type : Automatic,Semi-Automatic
- Power Consumption : 7 HP
FAQs: AUTOMATIC BAG FILLING SYSTEM
What are the advantages of using an Automatic Bag Filling System?
Automatic Bag Filling System is an advanced packaging machine that is known for its robust design, fully automated operation, and high filling efficiency. This premium class can be used for the packaging of many different types of products in granular and powdered forms.
This electrically powered machine is capable of running for longer periods with high precision and accuracy.
What types of products can an Automatic Bag Filling System handle?
Automatic Bag Filling System designed and developed by our company is in high demand within various industries such as food, pharmaceutical, chemical, plastic product manufacturing, and more for efficient filling of a wide range of products which include food grains, granular chemicals, pet food, agrochemical These systems can handle a wide range of products, including cement, chemicals, food products, pharmaceuticals, agricultural materials, pet food, and more.
Can Automatic Bag Filling System handle different bag sizes and materials?
Yes, the offered Automatic Bag Filling System is capable of handling many different types of products which makes it highly demanding among our clients. The adaptable filling mechanism of this Industrial machine allows you to fill packages of various shapes and sizes that are made of materials such as light-density plastic, paper, and woven materials.
Is an Automatic Bag Filling System customizable for specific production needs?
Yes, the Automatic Bag Filling System comes with many customizable options to fulfill the specific requirements of the production line. It is designed as per Industrial standards making it easier to integrate it with other industrial equipment to enhance the overall productivity of the system.
Advanced Control & Precision Filling
Equipped with a PLC-based control system and a user-friendly digital LCD display, this bag filling machine delivers highly accurate filling results with an impressive accuracy of 0.2% of the filling weight. Touch panel and button controls allow operators to customize the process with ease, ensuring efficiency and precision with every cycle.
Enhanced Safety & Operator Protection
Safety is integral to this system, offering features such as emergency stop, overload protection, and robust safety guards. The equipment is mounted with leveling pads for stability, while optional wheels provide additional mobility if needed-guaranteeing secure and adaptable operation in busy industrial settings.
Versatility for Multiple Industries
Compatible with open mouth and valve bags, this versatile system supports packaging of goods in plastic, paper, or jute bags. The feeding mechanism (vibratory, screw, or belt) suits different materials, making it ideal for use in food processing, chemical production, fertilizers, and construction materials packaging.
FAQ's of Automatic Bag Filling System:
Q: How does the automatic bag filling system enhance productivity?
A: The system automates the filling process, handling 20-50 bags per hour with minimal supervision. This efficiency reduces manual labor, increases throughput, and ensures consistent accuracy thanks to PLC controls and highly precise weighing.Q: What types of bags and materials can be used with this machine?
A: It supports open mouth and valve bags made from plastic, paper, or jute. The adjustable filling mechanism allows for diverse products, including powders and granules commonly used in food, chemical, fertilizer, and construction industries.Q: When should maintenance be performed on this machine?
A: Routine maintenance is recommended according to the manufacturer's guidelines-typically after a set number of operating hours or when there are changes in bag or product type. Periodic checks on moving parts, the feeding mechanism, and safety features ensure smooth, uninterrupted operation.Q: Where is this bag filling system best utilized?
A: This system is engineered for industrial environments, particularly in food, chemical, fertilizer, and construction sectors. Its robust construction and flexible configuration make it ideal for factories, processing plants, and large-scale packaging facilities across India and abroad.Q: What is the complete bag filling process on this machine?
A: The process begins with feeding material from the 75-liter hopper via vibratory, screw, or belt feeder. Bags are positioned, filled to the desired weight with 0.2% accuracy, then sealed using either heat sealing or stitching. The roller or flat belt conveyor moves filled bags for further handling.Q: How does the system ensure operator safety during bag filling?
A: Safety features include an emergency stop button, overload protection, and physical safety guards. The fixed base with leveling pads ensures steady operation, and the control system prevents unsafe activation, reducing risks during use.Q: What are the key benefits of using this automatic bag filling machine?
A: Primary benefits include precise filling, high throughput, versatile bag and material compatibility, robust build quality, and comprehensive safety measures. This leads to reduced operational costs, improved product consistency, and a safer working environment.
Tell us about your requirement
Price:
Quantity
Select Unit
- 50
- 100
- 200
- 250
- 500
- 1000+
Additional detail
Mobile number
Email
More Products in Bagging System Category
Granules Filling Machine
Price 396000.00 INR / Unit
Minimum Order Quantity : 1 Unit
Material : Mild Steel
Voltage : 440 Volt (v)
Automatic Grade : Semi Automatic
Filling Capacity : 10 gm 1 kg
Guar Gum Powder Packing Machine
Price 456000 INR / Unit
Minimum Order Quantity : 1 Unit
Material : Stainless Steel (SS304 contact parts)
Voltage : 440 Volt (v)
Automatic Grade : SemiAutomatic,Automatic
Filling Capacity : 10 gm to 1 kg
Chana Dal Packing Machine
Price 336000 INR / Unit
Minimum Order Quantity : 1 Unit
Material : Stainless Steel (Food Grade)
Voltage : 220V / 380V
Automatic Grade : SemiAutomatic,Automatic
Filling Capacity : 50g 1kg (Adjustable)

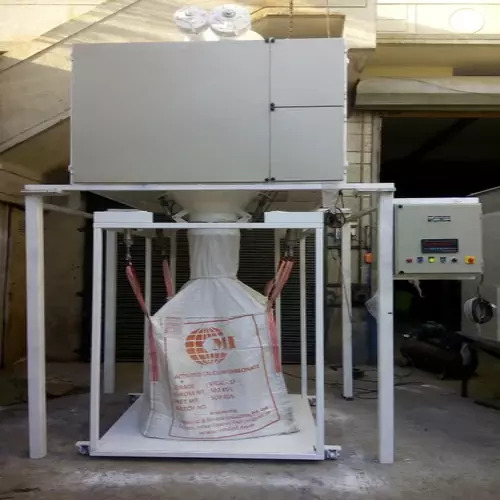

Jumbo Bag Packing Machine
