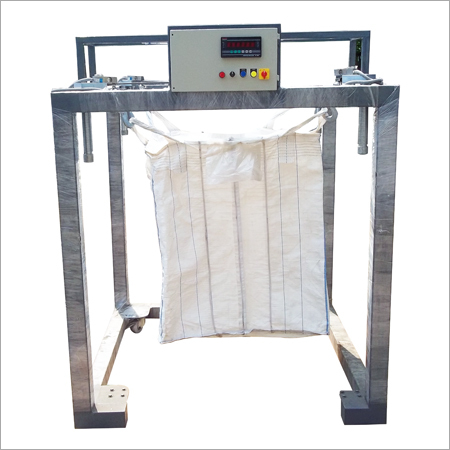

Jumbo Bag Filling System

Name: Jumbo Bag Filling System
Brand: SIGMA INSTRUMENTATION
Price: 468000.00 INR
Availability: InStock

Price 468000.00 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Jumbo Bag Filling System Specification

Type
Filling Machine

Material
Stainless Steel

Capacity
500 - 1200 Kg/hr

Dimension (L*W*H)
L-1500 mm X w- 1500 mm X H 2900 mm approx Millimeter (mm)

Color
Grey

Jumbo Bag Filling System Trade Information

Minimum Order Quantity
1 Piece

FOB Port
Ahmedaabd

Supply Ability
20 Pieces Per Month

Delivery Time
1 Week

Sample Available
Yes

Packaging Details
standard packing

Main Export Market(s)
Australia, Africa, Asia

Main Domestic Market
All India

Certifications
iso certified

About Jumbo Bag Filling System

In order to compete with our counterparts across the world, we are indulged in manufacturing, exporting and supplying premium quality Jumbo Bag Filling System. This machine is manufactured by utilizing pristine quality components and latest machinery as per industry norms. The offered machine is tested on different quality parameters at our technically sound production division as per the directions of our deft professionals. Our precious clients can purchase this Jumbo Bag Filling System from us in both, standard as well as customized options at a nominal price range.

Jumbo Bag Filling System Advantages:

Perfect finish
Sturdy constructions
High strength
Longer service life

Jumbo Bag Filling System Specifications :

System - Jumbo Bag Filling Machine

Scope of Supply - Conveyor / Crane / Mechanical trolley / Storage Silo / Belt conveyor / Screw Conveyor / Rotary Valve
Capacity - 500 kg to 1200 kg , up to 2000 kg.
Output - 6-8 / 18-20 bags per hour powder / granule
Dimension - L-1500 mm X w - 1500mm X H- 2900 mm approx ( Customize )
Filling Accuracy - +/- 0.2%
Filling Mechanism - Electro - Pneumatic Operate Gate, Rotary Valve , Screw Conveyor
Filling System - Load cell based, Weigh metric coarse and Fine with auto in light correction
Filling Mode - Coarse and fine filling systems apply
Air Supply - 8-10 Bar.

Applications of Jumbo Bag Filling System

The Jumbo Bag Filling System finds versatile applications and is well-suited for packaging a variety of materials, including guar gum powder, chemical powder, plastics, granules, fly ash, mineral powder, fertilizer, cattle feed, soybean meal, soybean doc, and more.

Get a Close Look at Jumbo Bag Filling System.

The salient capabilities usually are as abide by:

Previous to leaving behind your stuffing station your crammed material will be accessed deaerated & densified Bags usually are secure, stackable, safe and sound & simple to handle
Clear luggage usually are positioned simply by some loops hanging from the majority luggage around the hanging take into consideration support frames producing these individuals simple to reach threads
The inlet spout will be covered towards the flared conclusion involving stuffing go by a slip wedding ring close off which allows correct placement from the lining
Filling circuit will be handled by the micro-controller for efficient stuffing
Offered Volumes: 500kg to help 1500 kilos.
Offered Styles: 1200 by 1200 by 1200 mm as well as 1500 by 1500 by 1800 mm

All of us likewise handle cumbersome orders dependent upon thickness from the material.
